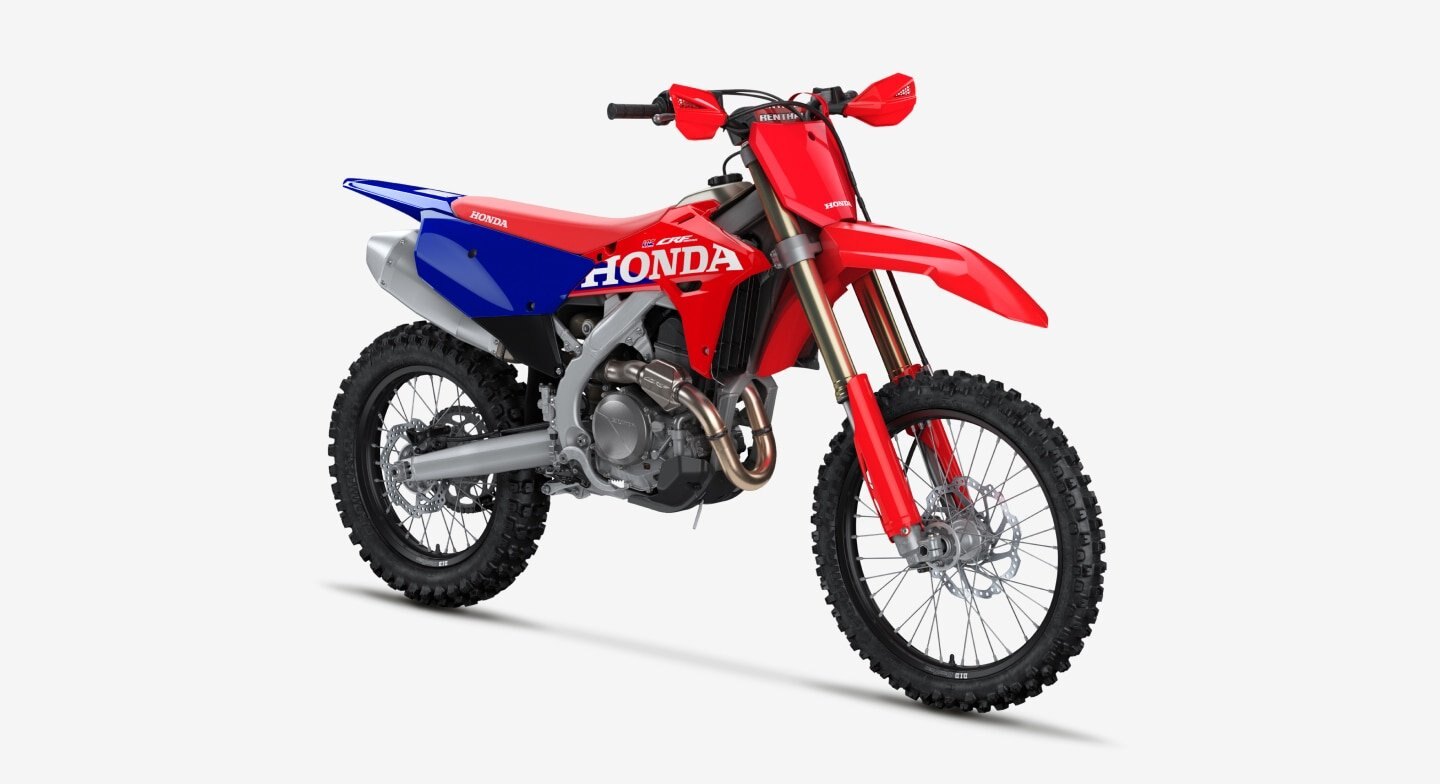

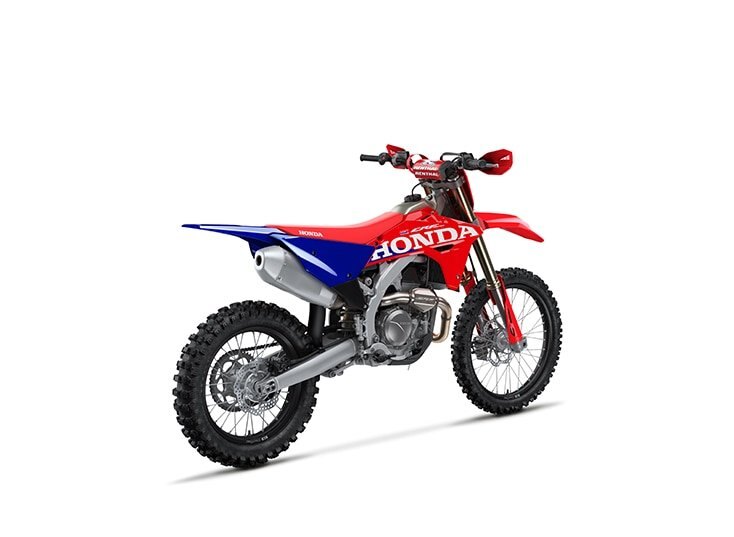

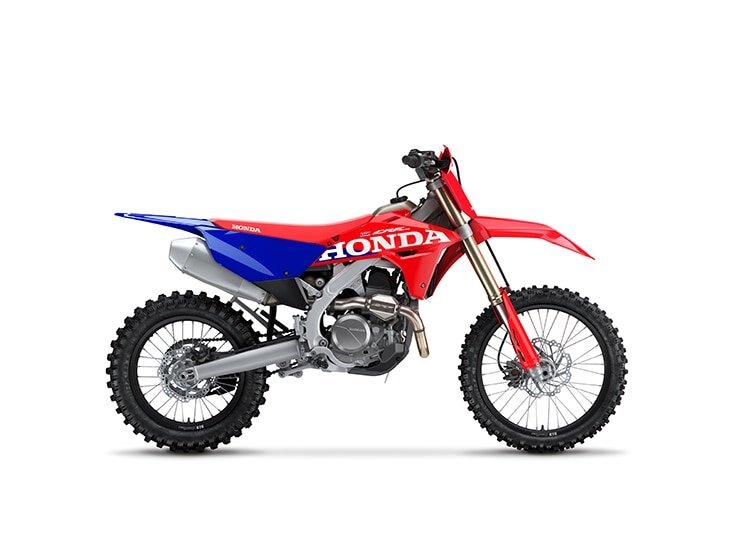

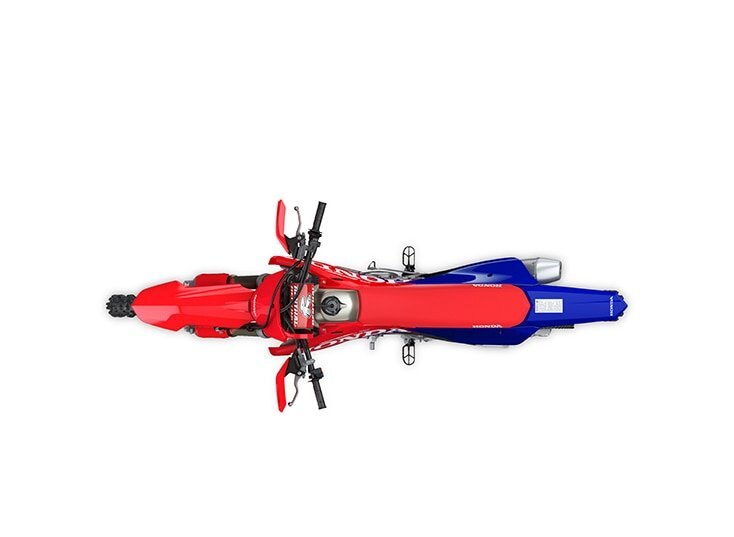

2027 Honda CRF450RX

  • 2027 Honda CRF450RX
  • 2027 Honda CRF450RX
  • 2027 Honda CRF450RX
  • 2027 Honda CRF450RX
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The Trail Doesn’t Stand a Chance

Built on the same all-new platform as the 2027 CRF450R, the CRF450RX is engineered for off-road dominance. Specially valved Showa® suspension, an 18-inch rear wheel, and factory handguards help it take on demanding terrain with precision and control. And like its MX brother, it’s improved in every way: new engine, new frame, lighter weight, with power and torque tuned for the way riders actually ride — not just dyno charts. Finished in bold new red, white, and blue styling, its tri-colour look proudly reflects the Honda HRC racing identity on which this off-road weapon is built.
Specifications
Model
CRF450RX
Category Name
Motorcycles
Year
2027
Sale Type
New
Manufacturer
Honda
Color
Extreme Red
Tires
Front: 90/90-21 Rear: 120/90-18
Brakes
Front: 260 mm disc Rear: 240 mm disc
Colour
Extreme Red
Wheelbase
1,490 mm (58.7 in)
Curb Weight
109 kg (240 lb)
Engine Type
Liquid-cooled single-cylinder
Final Drive
#520 chain; 13T/51T
Seat Height
951 mm (37.4 in)
Valve Train
Unicam, 4 valves
Displacement
450 cc
Transmission
Five-speed
Bore & Stroke
97 mm x 62.8 mm
Fuel Delivery
PGM-FI electronic fuel injection with 46 mm throttle bore
Fuel Capacity
7.1 litres
Rear Suspension
Pro-Link® system; fully adjustable Showa single shock; 305 mm (12 in) travel
Front Suspension
49 mm inverted Showa fork with rebound and compression damping adjustability; 273 mm (10.8 in) travel.
Ground Clearance
326 mm (12.8 in)
Compression Ratio
13.8:1
engine & drivetrain

450 cc Unicam® Engine

A new engine this year features a redesigned Unicam® valve layout that aligns intake and exhaust rockers on a common axis to increase valvetrain rigidity and create a more compact package.

All-New Clutch Assembly

Totally redesigned using HRC works feedback and developed on the MXGP circuit, the clutch-disc diameter is smaller this year, and the primary drive gear is redesigned for lightness. A new back-torque-limiting system uses rubber dampers instead of springs, which also provides a slipper-clutch function—the world’s first of its kind. Compared to cam-type slipper clutches, it’s lighter and ideally suited to off-road use.

Smaller, Lighter Engine

The complete redesign results in an engine that delivers 10.3 percent more peak horsepower, 3.7 percent more peak torque, and is 17 mm narrower and nearly 6 pounds lighter than the 2026 model.
chassis and suspension

New Frame

The 2027 frame may look the same, but it’s really all-new, with slightly more steering rake and a longer wheelbase. The major frame components have been fine-tuned for rigidity and weight loss. Meanwhile, the footpegs moved 5mm to the back, making it easier to shift your weight over the rear wheel to help it hook up.

Showa® Spring Fork

Specially tuned for off-road riding, the new 49 mm Showa® fork features Kashima coating to the internal sliding components, enhancing stroke feel and improving smoothness. A DBS (Dynamic Blow System) main-piston valve increases compression damping in the extremely low- to low-speed range, improving stroke consistency.

Rear Suspension

A lighter shock body is surrounded by a new red spring. The shock itself is more responsive, enhancing damping feel in the low-speed compression range and providing a more consistent feel throughout the suspension stroke.
additional features

Battery Box

The battery box is positioned low to improve the centre of gravity. It’s also easy to service and watertight, so there’s less to worry about when racing in wet conditions.

Honda Selectable Torque Control (HSTC)

Changing terrain requires changing power characteristics. No worries: This bike features our Honda Selectable Torque Control (HSTC). Depending on the available traction, you can choose from one of three settings to dial your bike in perfectly.

Titanium Fuel Tank

Every gram counts, so we equipped the bike with a titanium fuel tank. It is light and strong, and thinner than our previous plastic unit, freeing up more space and helping to centralize the fuel's mass.
