2023 POLARIS RANGER 570

Engine & Drivetrain

Cooling

Liquid

Cylinders Displacement

567cc

Drive System Type

On-Demand True AWD/2WD/VersaTrac Turf Mode

Engine Braking System (EBS)

Not Equipped

Engine Type

4-Stroke Single Cylinder DOHC

Fuel System/Battery

Electronic Fuel Injection

Horsepower

44 HP

Transmission/Final Drive

Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)

33.3 x 48.7 x 12.3 in

Box Capacity

500 lb (226.8 kg)

Estimated Dry Weight

1,158 lb (525 kg)

Fuel Capacity

9.5 gal (35.9 L)

Ground Clearance

11 in (27.9 cm)

GVW

2,255 lbs.

Hitch Towing Rating

1,500 lb (680 kg)

Hitch Type

Standard 2 in (5 cm) Receiver

Overall Vehicle Size (L x W x H)

108 x 56 x 74 in. (274.3 x 142.2 x 188 cm)

Payload Capacity

1,000 lb (453 kg)

Person Capacity

2

Wheelbase

73 in (185.4 cm)

Brakes

Front/Rear Brakes

4-Wheel Hydraulic Disc

Parking Brake

Park In-Transmission

Technology

Adjustable Driver Seat

Not Equipped

Cargo System

Lock & Ride®

Color / Graphics

Sagebrush Green

Electronic Power Steering

Not Equipped

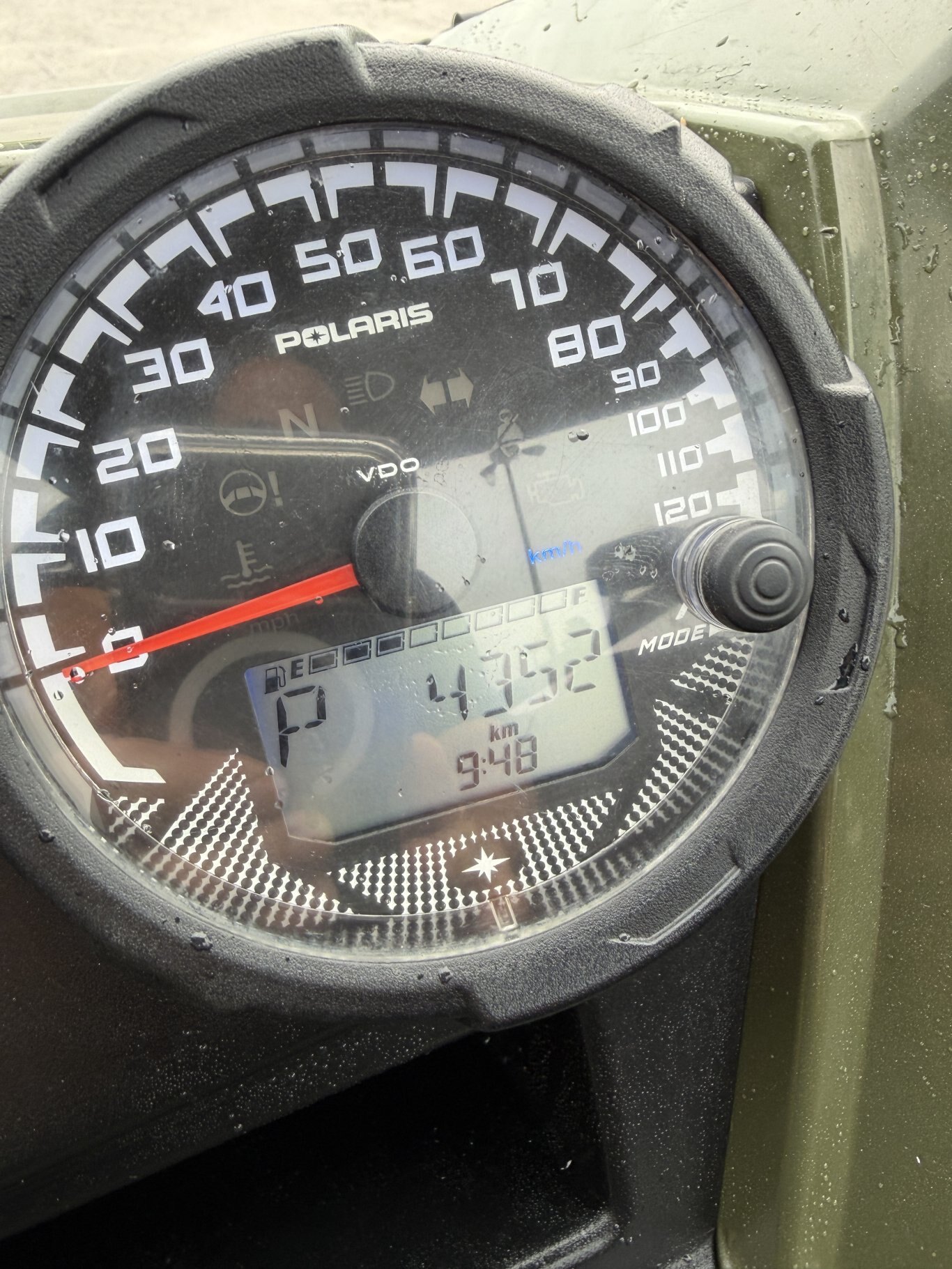

Instrumentation

4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet

Lighting

55W Headlight, LED Taillamps

Other Standard Features

Gas Assist Dump Box, Single Latch Tailgate, Rear-mounted Fiberglass Insulated Exhaust System, Standard In-dash SAE Charge Port, 340 CCA Battery, 660W Charging System (Stator), 20.25 Gal. Onboard Storage with Enclosed Dash Bins and Integrated Cell-phone Holder, Sealed Suspension Bushings and Wheel Bearings, Steel Front Bumper With Winch Mount and Bull Bar, Rear Wheel Liners

RIDE COMMAND+

Available

Tilt Steering

Standard

Wheels & Tires

Front Tires

25 x 8-12; Carlisle 489

Rear Tires

25 x 10-12; Carlisle 489

Tire Ply Rating

4 Ply Rated

Wheels

Stamped Steel

Suspension

Front Suspension

MacPherson Strut 9" (22.9 cm) Travel

Rear Suspension

Dual A-Arm, IRS 10" (25.4 cm) Travel

Turning Radius

12.6 ft (386 cm)
